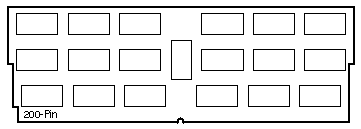

501-6056
256MB 5V ECC
60ns DIMM
w Gate Array Logic
Option 7005
February 2001

Memory Map

Notes

1. DIMMs are required on both the Riser Board and the System Board.
2. Every populated bank must contain four same-size DIMMs. Four same-size DIMMs are a quad.
3. To activate 2-way interleaving, quads must be installed in banks 0 and 1, which are non-adjacent banks.
   (A third quad may be installed in either remaining bank, but that will disable interleaving.)
4. To activate 4-way interleaving, all four banks must be populated with quads.
5. Each bank addresses 1GB of memory.
6. 64MB DIMM 501-2480 and 128MB DIMM 501-3136 are not supported.
7. 16MB and 32MB DIMMs are not sold for the Ultra 80 System Board.
8. The 501-5936 shipped in the Enterprise 420R. It is not supported in the Ultra 80.
9. The 501-6718 began shipping in the Netra t 1400/1405 in November 2003.
10. The F501-6718 was released for inventory management in February 2004.
11. The F501-6718 (Micron MT36DT16144G-6) is not an orderable FRU.
