Sun 501-6737 V890 PCI I/O Board
Larger Photo
Email A Friend
Sun 501-6737 V890 PCI I/O Board
0
Reviews
Sun
original product. Product in stock, available immediately.
Our Price:
£
125.00
Availability::
Usually Ships in 24 Hours
Product Code:
501-6737
Qty:
minus
plus
Description
Technical Specs
Sun V890 PCI I/O Board.
Data General Part Number
501-6737
.
Original Data General Product.
I/O Board
Servers
Sun Fire V890
501-6737
PCI-to-IDE Controller
March 2004

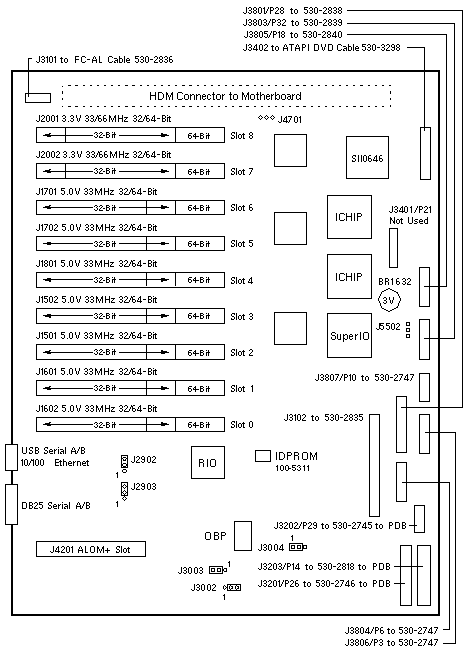

Jumper Settings
JUMPER
PINS
SETTING
DESCRIPTION
J2902
1-2
2-3
In
In
RS-232 +12Vdc
RS-423 (default)
J2903
1-2
2-3
In
In
RS-232 -12Vdc
RS-423 (default)
J3002
1-2
2-3
In
In
FPROM high half booting
FPROM low half booting (default)
J3003
1-2
2-3
In
In
FPROM write protected
FPROM write enabled (default)
J3004
1-2
2-3
In
In
Select Flash PROM (default)
Select ROMBO
Schizo PCI Bridge Addressing
PHYSICAL
LOGICAL
ICHIP
DEVICE PATH
SPEED
PCI Slot 8
Bus C Device 0
1
/pci@9,600000/<device>@1
66MHz
PCI Slot 7
Bus C Device 1
1
/pci@9,600000/<device>@2
66MHz
PCI Slot 6
Bus D Device 2
1
/pci@9,700000/<device>@2
33MHz
PCI Slot 5
Bus D Device 3
1
/pci@9,700000/<device>@3
33MHz
PCI Slot 4
Bus D Device 4
1
/pci@9,700000/<device>@4
33MHz
PCI Slot 3
Bus B Device 1
0
/pci@8,700000/<device>@2
33MHz
PCI Slot 2
Bus B Device 2
0
/pci@8,700000/<device>@3
33MHz
PCI Slot 1
Bus B Device 3
0
/pci@8,700000/<device>@4
33MHz
PCI Slot 0
Bus B Device 4
0
/pci@8,700000/<device>@5
33MHz
IDE
Bus B Device 0
0
/pci@8,700000/<device>@1
33MHz
FC-AL
Bus A Device 1
0
/pci@8,600000/<device>@2
66MHz
GEM
Bus A Device 0
0
/pci@8,600000/<device>@1
66MHz
RIO
Bus D Device 0/1
1
/pci@9,700000/<device>@1
33MHz
Notes
The minimum operating system is Solaris 8 2/04 or Solaris 9 4/04.
IDPROM 100-5311 is not available as a FRU.
The programmed IDPROM contains two MAC addresses.
