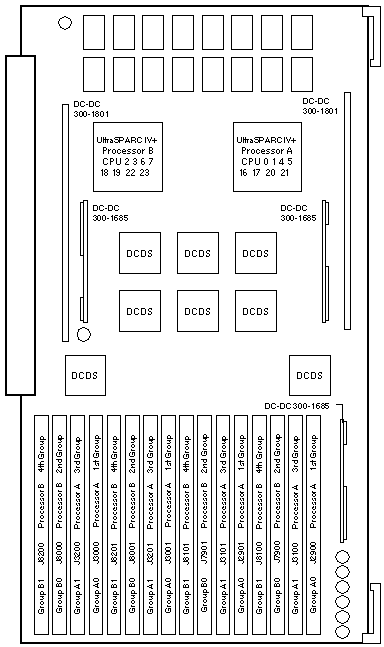

Sun Fire V490/V890

1800MHz CPU/Memory Board

Options 7300A-Z / 7301A-Z / 7303A-Z
7280A-KIT-Z / 7281A-KIT-Z / 7303A-KIT-Z
CPUVX90-2-1800-08Z
CPUVX90-2-1800-16Z
CPUVX90-2-1800-32Z

501-7881
0MB FRU
FAB 270-6636
UltraSPARC IV+
Panther

Notes

1. The minimum V490 and V890 OS is Solaris 9 9/05, or Solaris 10 3/05 HW1.
2. Sun Fire V490 and V890 OBP >=4.18 Version 8 is required.
3. Sun Fire V890 System Board 501-7199 or 501-7227 is required.
4. Sun Fire V890 System Board 501-6771 is not supported.
5. Option X7280A-KIT-Z includes an 8GB 1800MHz USIV+ and System Board 501-7227.
6. Option X7281A-KIT-Z includes a 16GB 1800MHz USIV+ and System Board 501-7227.
7. Option X7303A-KIT-Z includes a 32GB 1800MHz USIV+ and System Board 501-7227.
8. CPU/Memory 501-7691 became the primary part in September 2006.
9. CPU/Memory 501-7506 became the manufacturing substitute part in September 2006.
10. CPU/Memory 501-7881 became the primary part in April 2007.
11. CPU/Memory 501-7691 became the manufacturing substitute part in April 2007.

Configuration Notes

1. Mixing UltraSPARC IV and IV+ CPU/Memory boards is supported.
2. Mixing UltraSPARC III and IV+ CPU/Memory boards is not supported.
3. The 1800MHz UltraSPARC IV+ is not supported in the Sun Fire V480 or V880.
4. Refer to Configuration Guide 819-1813 for supported mixed speed configurations.

Memory Notes

1. Four DIMMs of the same size form a group.
2. The minimum memory configuration is sixteen DIMMS.
3. Memory errors include CPU number, J number, and Slot location.
4. DIMM groups associated with a failed CPU are unavailable for use.
5. Interleaving is limited to memory on the same CPU/Memory Board.
6. Two-way interleaving occurs in any group when the DIMM size does not match the size used in any other group.
7. Four-way interleaving occurs between any two groups when the DIMM sizes are the same.
8. Eight-way interleaving occurs when the DIMMs in all four groups are the same size.
