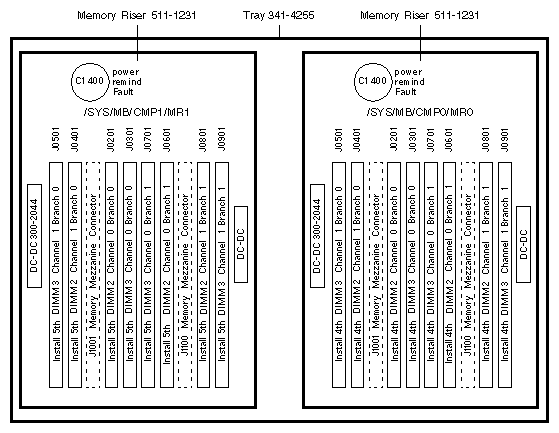

Memory Mezzanine Assembly

540-7792
Mezzanine Assembly
with 511-1231
with Air Duct 330-4743

Memory Notes

1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
4. All FBDIMMs must be the same density. Pairs must have the same Sun part number.
5. Install FBDIMM Filler 371-3651 in the unused slots.
6. Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.
7. Memory Riser 511-1231 is compatible with 1.5V and 1.8V VDD/VDDQ DIMMs.
