Sun 146Gb SAS 10k 2.5" Hard Drive (Marlin).
Sun Part Number 540-7868.
Original Sun Product.
Hitachi HUC101414CSS300 (146.8GB)2 1/2" 10000 RPM 3Gb/Sec Serial Attached SCSI| Servers | Sun Blade X6220, X6240, X6250, X6270 M2, X6270
Sun Blade X8400, X8420, X8440, X8450
Sun Fire T1000, T2000
Sun Fire V215, V245
Sun Fire X4100, X4100 M2, X4140, X4150, X4170, X4170 M2
Sun Fire X4240, X4250, X4270, X4270 M2
Sun Fire X4440, X4450, X4470
Sun Fire X4600, X4600 M2, X4640
SPARC Enterprise M4000, M5000
SPARC Enterprise T1000, T2000, T5120, T5140, T5220, T5240, T5440
| | Telco Systems | Netra T2000, T5220, T5440
Netra X4200 M2, X4250, X4450 |
540-7868
Marlin Bracket FRU
15mm Bracket 541-2123
XRB-SS2CF-146G10K
SESX3C11Z
Notes- Drive 390-0377 was released and added to 540-7151 and 541-2291 in November 2007.
- Drive 390-0377 was added to 540-7355 in January 2008.
- Drive 390-0377 was added to 540-7152 in April 2008.
- Drive 390-0377 was added to 540-7864 and 540-7868 in February 2009.
- Drive 390-0377 was added to 540-7866 in April 2009.
- Drive 390-0377 is not qualified for use in the Sun Fire V445.
- Assembly 540-7864 was added to SEVX3C11Z in April 2009.
- Assembly 540-7868 replaced 540-7355 in SESX3C11Z in April 2009.
- Nemo Bracket 541-3004 includes Mylar Insulator 230-4811 required by 390-0377.

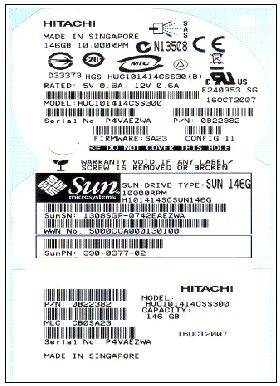

- The Hitachi model number on the serial number label is HUC101414CSS300.
- The Sun model number on the serial number label is H101414SCSUN146G.
- The Product Identification in SCSI Inquiry bytes 16-31 is H101414SCSUN146G.
Sun original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
|
