Sun 542-0268 System Board with Tray
Larger Photo
Email A Friend
Sun 542-0268 System Board with Tray
0
Reviews
Sun
original product. Product in stock, available immediately.
Our Price:
£
1,000.00
Availability::
Usually Ships in 24 Hours
Product Code:
542-0268
Qty:
minus
plus
Description
Technical Specs
Extended Information
Sun System Board with Tray.
Sun
Part Number
542-0268
.
Original
Sun
Product.
542-0268
Assembly/FRU
511-1213 + Tray
Tray 341-6196

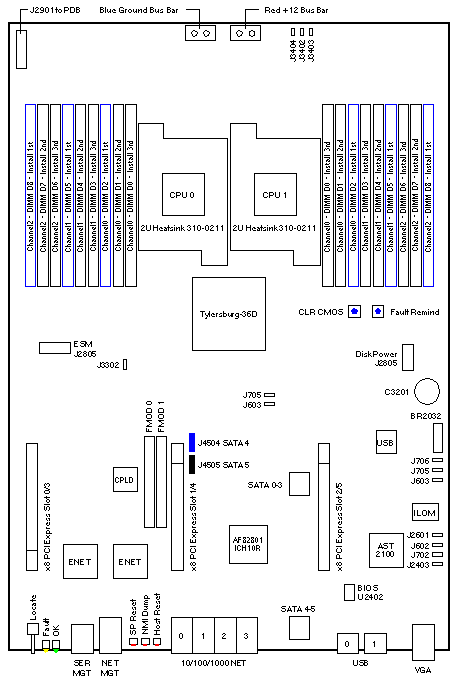

Headers, Jumpers, LEDs, and Switches
LOCATION
PINS
SETTING
DESCRIPTION
J602
1-2
Out
Clear SP Password (install to clear)
J603
1-2
Out
SP Debug
J702
1-2
Out
SP Disable
J705
1-2
NA
Not Stuffed
J706
1-2
NA
Not Stuffed
J2403
1-2
In
BIOS Write Enable (default)
J2601
1-2
Out
Manfacturing Mode (default)
J3302
1-2
Out
CPLD Debug
J3402
1-3
Out
Unknown
J3403
1-3
Out
Unknown
J3404
1-3
Out
Unknown
Notes
The minimum Solaris operating system is Solaris 10 10/09.
The System Board FRU includes two 250-1802 Cleaning Wipes, and
two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
Heatsink Notes
Use a 5/32" hex driver to remove and replace the heatsink screws.
Heatsink FRU 541-2545 includes Heatsink 310-0161, two 240-6751 SpringScrews,
one 250-1802 Cleaning Wipe and one 310-0065 Shin-Etsu X23-7783D Thermal
Grease Syringe. Heatsink 310-0161 is pre-greased with Shin-Etsu G751.
Memory Installation Notes
Install memory filler panel 350-1288 in all unused slots.
Install the first three DIMMs in CPU0 and CPU1 slots D8, D5, and D2.
Install the second three DIMMs in CPU0 and CPU1 slots D7, D4, and D1.
Use of the same DIMM size and speed is recommended for maximum performance.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
