Sun Fire 501-6840 V20z System Board
Larger Photo
Email A Friend
Sun Fire 501-6840 V20z System Board
0
Reviews
Sun
original product. Product in stock, available immediately.
Our Price:
£
100.00
Availability::
Usually Ships in 24 Hours
Product Code:
501-6840
Qty:
minus
plus
Description
Technical Specs
Extended Information
Sun Fire V20z System Board.
Sun Part Number
501-6840
.
Original Sun Product.
Sun Fire V20z
Servers
Sun Fire V20z
501-6840
Newisys S01357 / S00401 / S00189 / S00190
370-6730 w/o BIOS
A55A-AA Chassis FRU 380-0979
A55B-AA Chassis FRU 380-0979
MAC Address 00093dxxxxxx

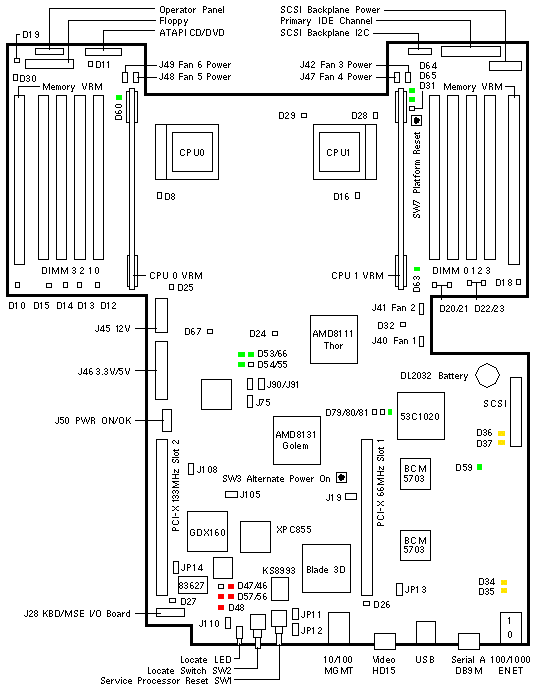

Jumpers
LOCATION
PINS
SETTING
DESCRIPTION
J19
1-2
1-2
Out
In
Port A is Port A (default)
Port A is Service Processor Console
J108
2-3
2-3
In
Out
Net Power Usage Indicator enabled (default)
Net Power Usage Indicator disabled
J110
1-2
2-3
In
In
Clear CMOS on next boot
Normal CMOS Operation (default)
JP11 *
1-2
1-2
In
Out
BIOS Main Body Write Enabled (default)
BIOS Main Body Write controlled by BIOS or SP
JP12 *
1-2
1-2
In
Out
BIOS Boot Block Write Enabled (default)
BIOS Boot Block Write controlled by SP
* Leave JP11 and JP12 in the default position.
HyperTransport/PCI Interrupt Map
HT/PCI BRIDGE
DEVICE
IRQ A
IRQ B
IRQ C
IRQ D
AMD-8131 Golem 0-B
PCI Slot 2
x
x
x
x
AMD-8131 Golem 0-A
BCM5703 Ethernet 0
x
AMD-8131 Golem 0-A
BCM5703 Ethernet 1
x
AMD-8131 Golem 0-A
53C1020 SCSI
x
AMD-8131 Golem 0-A
PCI Slot 1
x
x
x
x
Installing a 33MHz card in Slot 1 forces Bus A to operate at 33MHz and
affects performance of the BCM5703 Ethernet controllers.
LEDs
LOCATION
COLOR
STATE
DESCRIPTION
D8
Amber
Fault
CPU0 Status
D10
Amber
Fault
CPU0 Memory VRM Status
D11
Amber
Fault
DVD Status
D12-15
Amber
Fault
CPU0 DIMM 0-3 Status
D16
Amber
Fault
CPU1 Status
D18
Amber
Fault
CPU1 Memory VRM Status
D19
Amber
Fault
Floppy Status
D20-23
Amber
Fault
CPU1 DIMM 0-3 Status
D26
Amber
Fault
PCI Slot 1 Status
D27
Amber
Fault
PCI Slot 2 Status
D32
Red
Error
Fan at full speed
D34
Yellow
Normal
Gigabit Ethernet 0 Mode
D35
Yellow
Normal
Gigabit Ethernet 0 Link
D36
Yellow
Normal
Gigabit Ethernet 1 Mode
D37
Yellow
Normal
Gigabit Ethernet 1 Link
D46
Red
Normal
Service Processor Status
D47
Red
Unknown
Service Processor Status
D48
Red
Normal
Service Processor Status
D53
Green
Normal
Power Supply POWER OK
D54
Green
Normal
Power On Indicator
D55
Yellow
Reset
Reset Indicator
D56
Red
Normal
Ethernet Connected to Upper MGMT Port
D57
Red
Normal
Ethernet Connected to Lower MGMT Port
D59
Green
Normal
AMD-8111 RAM Power On
D60
Green
Normal
CPU0 VRM Power OK
D63
Green
Normal
CPU1 VRM Power OK
D66
Green
Normal
AMD-8111 Power OK
D67
Red
Red
Error
Reset
Power Reset Sequencer Internal Error
SW1 Service Processor Reset Pressed
D79
Green
Normal
53C1020 SCSI Channel A Indicator
D81
Green
Normal
53C1020 SCSI Controller Operational
Notes:
The normal state of D46 and D48 is an illuminated Red LED.
The normal state of D56 is a illuminated Red LED when a cable is connected.
The normal state of D57 is a illuminated Red LED when a cable is connected.
Sun
original product.
All items tested by our experienced team of technicians and pulled from working systems.
In stock, ready to ship.
Item is refurbished with 90 days warranty, extended warranty options available.
Same-day and next day delivery available.
