7041271
DDR3L-1333/PC3L-10600
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ

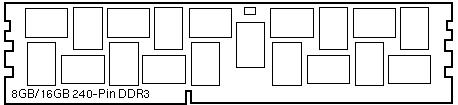

8GB Registered DIMM
16GB Option 7102494

Netra SPARC T4-1 Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.
4. Mixing DIMM sizes is not supported.
   Mixing 16GB 7041272 and 7051724 is not supported.
5. 16GB DIMM 7051724 requires firmware 8.2.1.b.

Netra SPARC T4-1B Notes

1. Install the first four DIMMs in all Channel 1 DIMM 0 slots.
2. Install the next four DIMMs all Channel 0 DIMM 0 slots.
3. Install the next eight DIMMs in the remaining slots.
4. Mixing DIMM sizes is not supported.
   Mixing 16GB 7041272 and 7051724 is not supported.
5. 16GB DIMM 7051724 requires firmware 8.2.1.b.

Netra SPARC T4-2 Notes

1. Install D0/D4 (blue) and D2/D6 (white) for a four DIMM configuration.
2. Install all DIMMS for an eight DIMM configuration.
3. Mixing DIMM sizes is not supported.
   Mixing 16GB 7041272 and 7051724 is not supported.
4. 16GB DIMM 7051724 requires firmware 8.2.1.b.

SPARC T5-1B and Netra SPARC T5-1B Notes

1. Mixing DIMM sizes is not supported.
